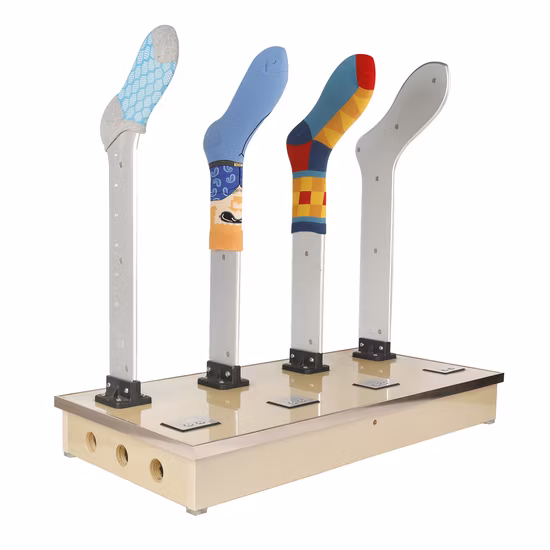

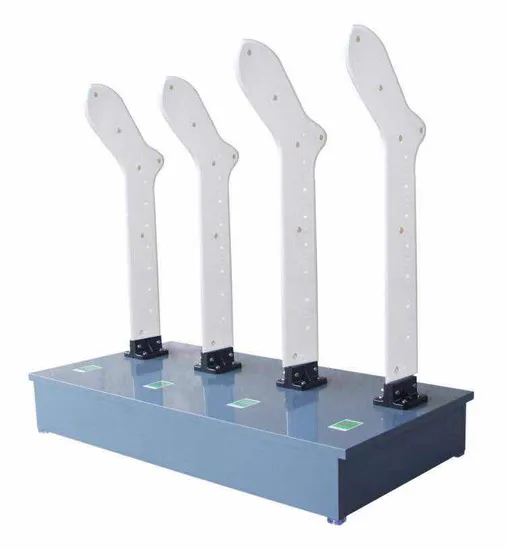

Electric Small Size Sock Boarding Machine for Ironing and Setting Socks

Overview

Basic Info.

Model NO.	FS-4P
Needle Style	None
Needle Bar Style	None
Computerized	Computerized
Certification	CE
Condition	New
After-sales Service	1 Year
Transport Package	Carton
Origin	China
HS Code	8451800003
Production Capacity	300pairs/ Hour

Product Description

Product Description

Technical Specification
Model:	FS-4P
Max. Production Capacity:	300Pairs/ hour
Preheat Time:	12-15 minutes
Net Weight:	20kgs
Voltage:	220V Single phase
Boarding Time:	8-10 seconds

Special shape sock board can be customized, the size of sock board can be customized

Product Parameters

1. Working Principle: This sock boarding machine(sock setting machine) is electronic type, which is using electricity of single phase 220V, 50HZ. Machine is working through the heat from the iron form, whose temperature can be adjusted, and heat is uniform, and is with electricity leakage protection. It can be used to iron socks at home.2. Usually our sock boarding machine can work after 10 minutes when power is on.3. The actual power per sock form is about 100W~250W according to different sizes of sock forms.4. One operator can handle 4~8 pcs of sock form, it takes only 8~10 seconds after sock is on sock forms according to different material of socks5. Flexible: all kinds of sock form can be installed on the same machine, it also takes less working space.6. Application: All kinds of socks can be ironed: plain socks, terry socks, thicker socks, five-toe socks, two-toe socks, vertical 3-D socks etc.7. Special sock forms can be made according to buyer's requirements.8. 4 sock plates can be disassembled, the size of the sock plate can be selected, and the boarding time is very fast.9. The function of the sock boarding machine: some yarns such as Rubber will shrink when heated, which can increase the elasticity of the socks.10. By ironing, the socks are changed from folds to flat, which is conducive to packing and selling.

Sock Production Line

We can supply complete socks production line such as Sock Knitting Machine, Sock Linking Machine, Sock Boarding Machine, Sock Yarn, Sock Tagging Machine, Yarn Doubling and Twisting Machine, Air Compressor...

Other Sock Boarding Machine
The sock boarding machine can be selected according to the output requirements

Box Type Sock Boarding Machine Rotary Type Sock Boarding Machine
